Chapter 4 Special Features

LDSII Programming Guide - 880015-0123 63

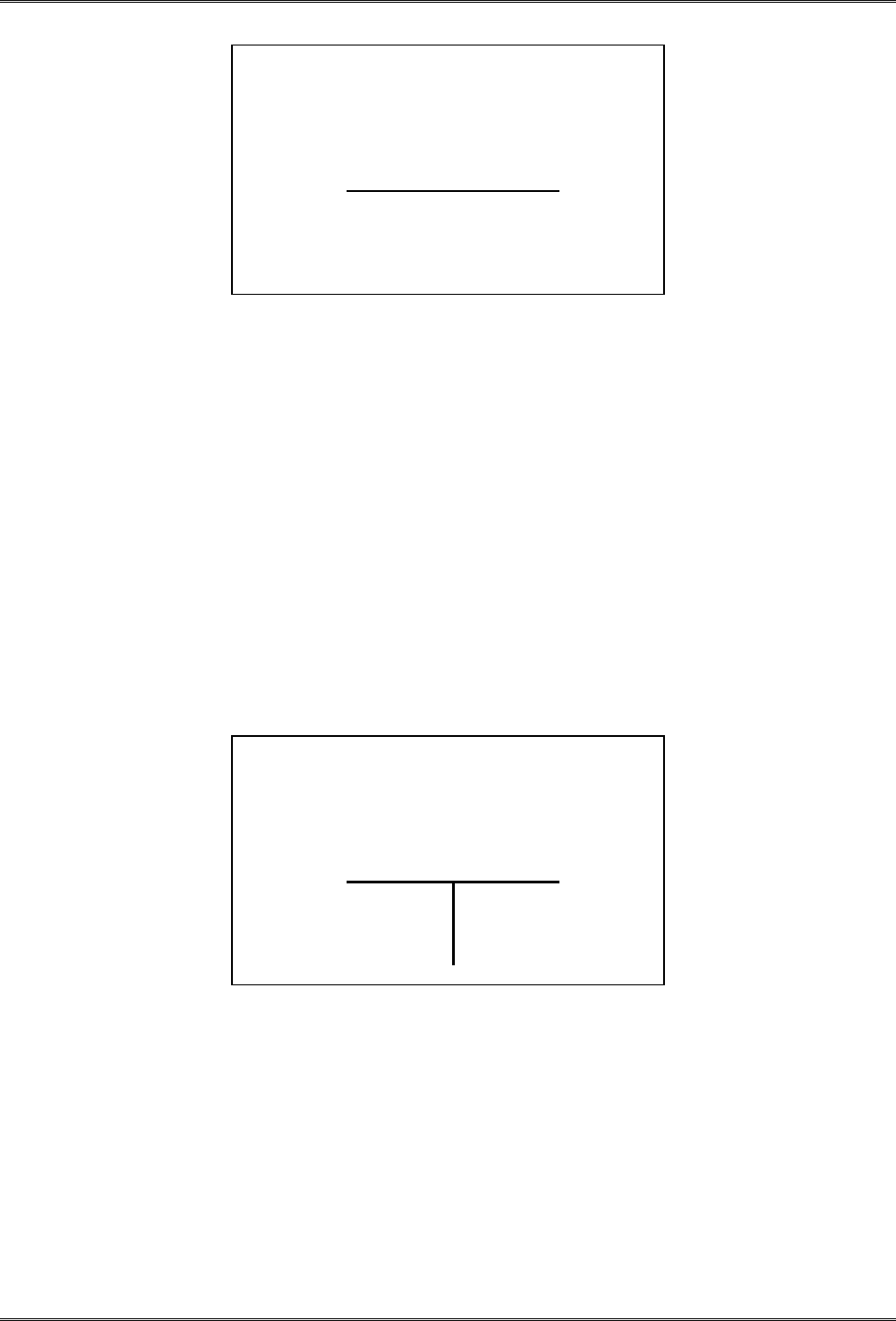

Figure 16 Line Draw Feature

Two Lines Example:

^A)

^D200) 3.3, 1.9, 0.125, 1.063, 5, 1

^F1) 1.0, 1.0, @line, 1.11, 0.01

^F1) 1.55,0.25,@line, 0.01, 0.75

^F1) 1.0, 1.0, @normal_14

^T1)Line Draw Feature

^D300)1

^Z)

Figure 17 Two Lines

This example shows a line inserted an inch from the left side and an inch from the bottom.

This line would be 0.01” in height and would be 1.11” in width or length. A second line is

being inserted 1.55” from the left edge and a .25” from the bottom. This line would be 0.75”

in height and would be 0.01” in width or length. This demonstrates that the Line Draw

feature can be used to draw any amount of lines desired without creating a new “^Tn)”

pointer as seen in the example above.
